Delving Deeper
2. Understanding voltage manipulation by VFD
To fully grasp why VFDs don't typically step up voltage, let's briefly explore their inner workings. As mentioned earlier, a VFD converts incoming AC voltage into DC voltage using a rectifier. This DC voltage is then filtered and stored in capacitors. The inverter section of the VFD then uses insulated-gate bipolar transistors (IGBTs) to rapidly switch the DC voltage on and off, creating a pulsed waveform that approximates an AC sine wave. By varying the width and frequency of these pulses, the VFD can control both the voltage and frequency supplied to the motor.
The key here is that the maximum output voltage of the VFD is limited by the DC bus voltage, which is directly related to the input AC voltage. If the input voltage is 230V, the DC bus voltage will be around 325V (230V 2). The VFD can then generate an output AC voltage that is less than or equal to the input AC voltage. It cannot exceed it. Think of it like a water pump: it can control the flow of water, but it can't create water out of nothing. The VFD is similar; it can control the voltage and frequency, but it can't generate voltage that wasn't already there.
In reality, the output voltage of a VFD is often slightly lower than the input voltage due to losses within the VFD itself. Components like the rectifier, inverter, and control circuitry all consume a small amount of power, which reduces the overall efficiency. This is why it's crucial to select a VFD with sufficient capacity for your motor to account for these losses and ensure optimal performance. It's better to have a VFD that's slightly oversized than one that's constantly running at its limit.
The control algorithm within the VFD is designed to optimize the voltage-to-frequency ratio for efficient motor operation. This ratio is crucial for maintaining constant torque and preventing motor damage. If the voltage is too low for a given frequency, the motor may struggle to produce the required torque. Conversely, if the voltage is too high, the motor may overheat and experience insulation failure. The VFD constantly monitors the motor's performance and adjusts the voltage and frequency accordingly to ensure smooth and reliable operation.
Special Cases: When VFDs Might Seem to Step Up Voltage
3. High Frequency, high voltage?
While standard VFDs don't inherently step up voltage, there are specific circumstances where their operation might create that impression. For example, if you instruct a VFD to operate a motor beyond its rated frequency, the VFD might increase the output voltage to maintain the voltage-to-frequency ratio. However, remember this voltage cannot exceed the original input voltage. It's a bit of a juggling act, and the VFD tries its best to keep everything balanced, but it's still bound by the laws of physics.
Another scenario involves the use of autotransformers in conjunction with VFDs. An autotransformer can be used to step up the voltage before it enters the VFD. The VFD then controls the frequency and voltage supplied to the motor, but the overall voltage level is higher than it would have been without the autotransformer. In this case, the VFD isn't actually stepping up the voltage itself, but it's part of a system that achieves that result. Think of it as a team effort, where the autotransformer provides the initial boost, and the VFD handles the fine-tuning.
Its important to emphasize that operating a motor beyond its rated frequency and voltage can have detrimental effects. The motor's insulation may be stressed, leading to premature failure. The motor's bearings may also experience increased wear and tear due to higher speeds. Therefore, it's crucial to carefully consider the motor's specifications and operating conditions before attempting to run it at higher frequencies. Consult with a qualified engineer or motor specialist to determine if it's safe and feasible.
Consider this example: Imagine a motor designed to run at 60 Hz and 230V. If you try to run it at 70 Hz with a standard VFD and the same 230V input, the VFD might attempt to increase the output voltage slightly to maintain the V/Hz ratio. However, the maximum voltage output will always be constrained by the input voltage. Attempting to force the VFD to output a higher voltage than the input will not work, and could damage the VFD and/or motor.
Voltage Considerations for Different Motor Types
4. Motor Voltage Rating
Different types of motors have different voltage requirements, and it's crucial to select a VFD that is compatible with the motor you intend to use. For example, some motors are designed to operate at 230V, while others require 460V or even higher voltages. Using a VFD with an inappropriate voltage rating can damage the motor or prevent it from operating correctly. Always double-check the motor's nameplate to determine its voltage requirements before connecting it to a VFD.
When selecting a VFD, it's also important to consider the input voltage available at your facility. If you only have 230V power available, you'll need to select a VFD that can operate on 230V input. If you need to run a 460V motor, you'll need to use a step-up transformer to increase the voltage before it enters the VFD. This is a common situation in industrial settings where higher voltage motors are often used for larger applications.
Furthermore, the type of motor control method used by the VFD can also influence the voltage supplied to the motor. Some VFDs use scalar control (V/Hz control), which provides a simple and cost-effective way to control motor speed. Other VFDs use vector control, which offers more precise control over motor torque and speed. Vector control VFDs typically require more sophisticated algorithms and may offer better performance in demanding applications, but they may also be more expensive.
It's worth noting that the voltage supplied to the motor can also affect its efficiency and performance. Running a motor at a lower voltage than its rated voltage can reduce its torque and power output. Conversely, running a motor at a higher voltage than its rated voltage can overheat the motor and damage its insulation. Therefore, it's crucial to ensure that the voltage supplied to the motor is within the manufacturer's specifications to optimize its performance and lifespan.
Practical Implications and Troubleshooting

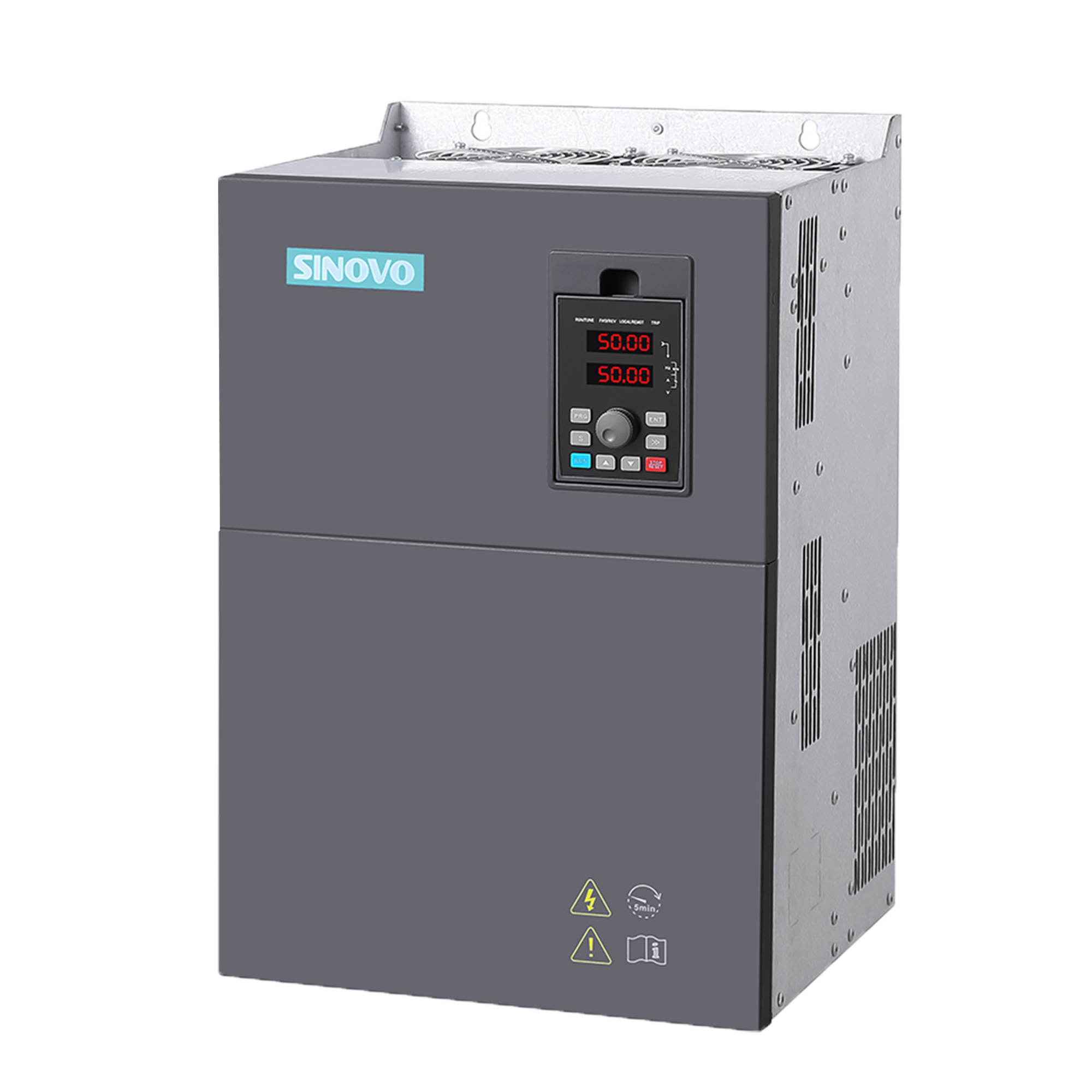

5. Application of VFDs
Understanding the limitations of VFDs regarding voltage is crucial for proper system design and troubleshooting. If you're experiencing problems with a motor that is connected to a VFD, it's essential to check the input voltage to the VFD and the output voltage being supplied to the motor. If the input voltage is too low, the VFD may not be able to provide the required voltage to the motor, resulting in reduced performance or even motor failure.
If you suspect that the VFD is not providing the correct voltage to the motor, you can use a multimeter to measure the voltage at the motor terminals. Compare the measured voltage to the motor's nameplate voltage. If the voltage is significantly different, there may be a problem with the VFD or the wiring between the VFD and the motor. Check the VFD's parameters to ensure that the voltage settings are configured correctly.
Another common issue is voltage drop in the wiring between the VFD and the motor. Long cable runs or undersized wiring can cause a significant voltage drop, especially when the motor is under heavy load. This voltage drop can reduce the motor's torque and cause it to overheat. Use appropriately sized wiring to minimize voltage drop and ensure reliable operation. Consult electrical codes and standards for proper wire sizing guidelines.
Remember to consult the VFD's manual for troubleshooting tips and guidance. The manual will provide detailed information about the VFD's parameters, error codes, and maintenance procedures. If you're unsure about how to troubleshoot a VFD, it's best to consult with a qualified electrician or VFD technician. Attempting to repair a VFD without proper training can be dangerous and may damage the equipment further.
FAQ: Your VFD Voltage Questions Answered!
6. Common questions about VFD and Voltage
Let's tackle some frequently asked questions about VFDs and voltage to solidify your understanding.
Q: Can I use a VFD to run a 480V motor on a 240V power supply?
A: Generally, no. A standard VFD cannot increase the voltage. You would need to use a step-up transformer to boost the voltage to 480V before* it enters the VFD.
Q: Will a VFD improve my motor's power factor?
A: Yes, VFDs generally improve the power factor compared to running a motor directly across the line. They do this by drawing current more in phase with the voltage.
Q: What happens if the input voltage to my VFD fluctuates?
A: Most VFDs have some tolerance for input voltage fluctuations. However, excessive fluctuations can cause the VFD to trip or even damage it. Consider using a voltage regulator to stabilize the input voltage if fluctuations are a persistent problem.
